FTP (Put)

■ Control appearance

■ Description

     Transmit a file to the FTP server.

     To configure FTP server settings, go to the [Setting] - [FTP].

■ Properties

     The following table is a list of properties that can be used with this control.

Property name	Default value	Description
FTP Server	SERVER00	Select a destination FTP server for Sending. Show the FTP setting by selecting [Setting]→[FTP].
Destination file name	Fixed value	Specify the file name to be saved on the FTP server. The value can be specified either as a character string constant (“Fix Value”) or as a STAG value (STAGxx). The subfolders can be accessed by specifying the path name that combines the directory name and the file name with the delimiter slash as the STAG value.
Target file	File00	Select a file to be transferred.
Next step	Down	Set the direction of the next block to be executed. If the processing goes to the outside of the frame, go back to the first block at (0, 0). If the target is an empty block, then the execution stops.

■ FTP server settings

     Before executing this control, please configure the following Settings.

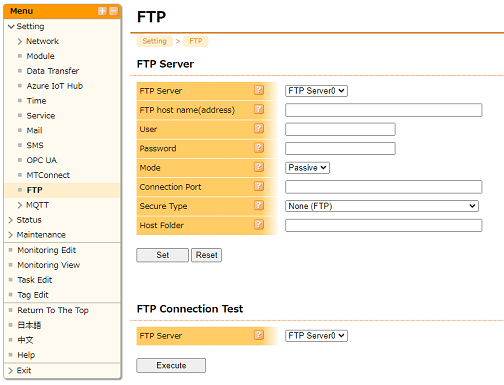

     Click the [Setting] - the [FTP] to open the FTP server setting page.

     Set the FTP server address, FTP server user , etc.

     When using FTP transmission items with VTC, the FTP server settings are reflected upon the next booting. Therefore, click the [Exit] - the [Save and Reboot].
