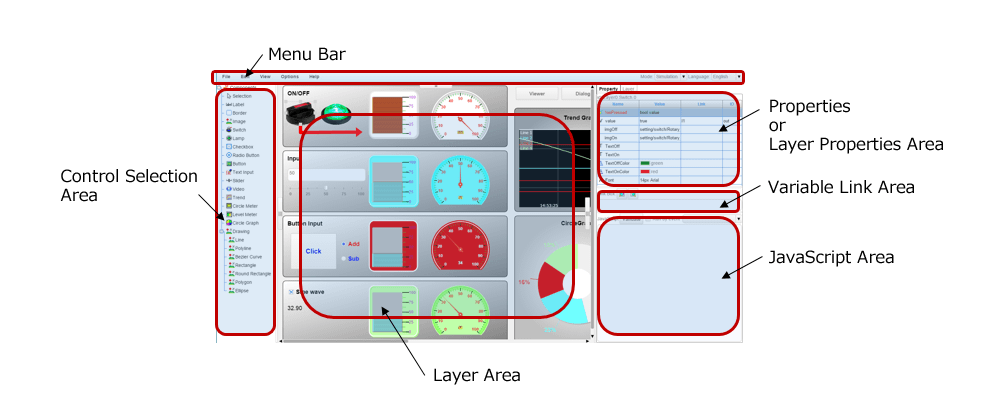

HMI Editor work areas

HMI Editor has the following work areas.

■ Menu bar

The menu bar is used to execute commands with menu buttons.

■ Control selection area

You can select the controls to place on the Layer area with this area.

■ Layer area

This area is where the page is designed.

■ Properties area

You can modify the property variables of controls with this area.

■ Variable Link area

This area is for linking control properties and variables.

■ JavaScript area

This area is used to configure the behavior of JavaScript for controls.

■ Layer properties area

You can add layers, delete layers, and modify layer properties with this area.
